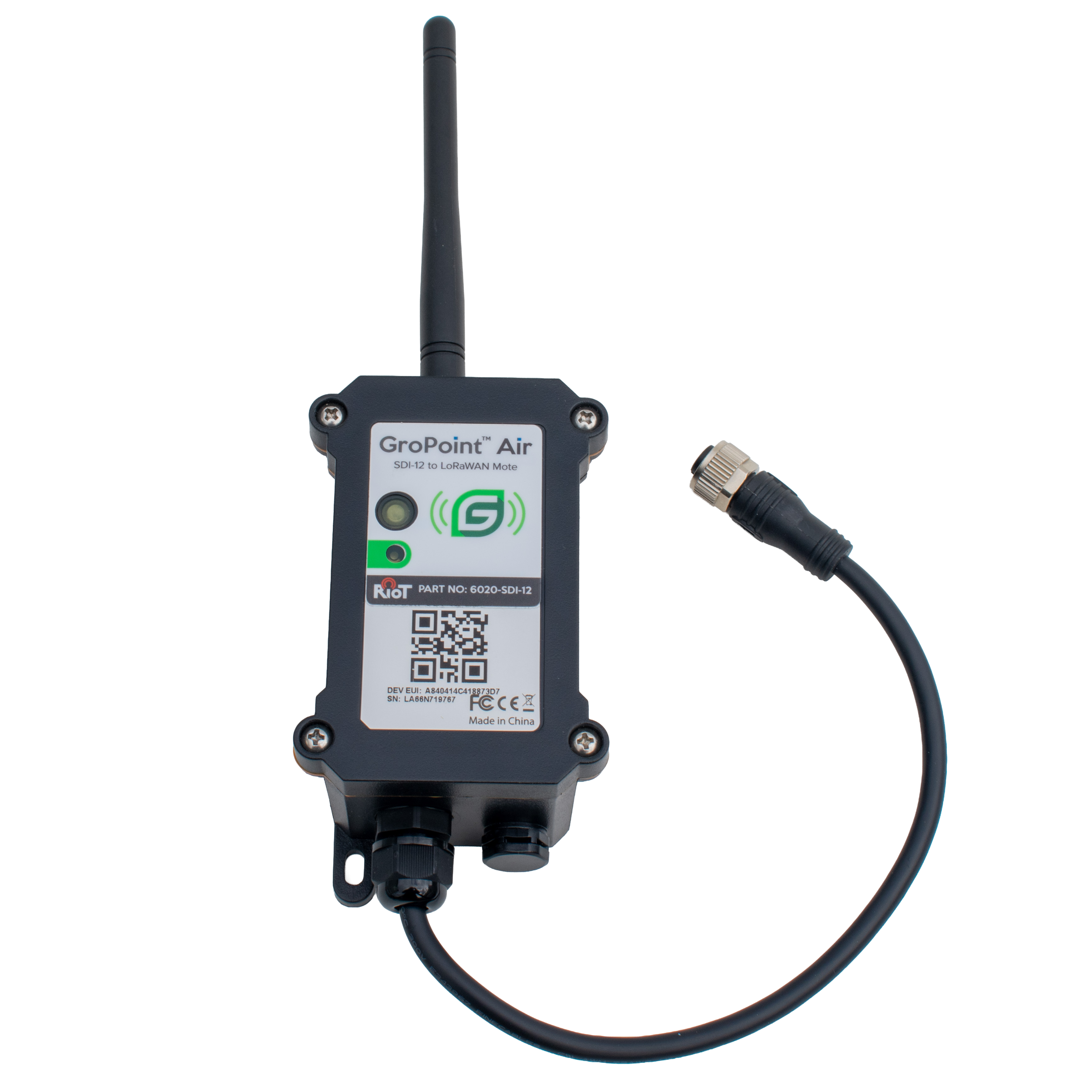

GroPoint™ Air
Wireless Connectivity for GroPoint™ Profile Soil Moisture Sensors
The GroPoint™ Air solution allows agriculture operators to easily and cost effectively build a distributed soil moisture monitoring network using the patented GroPoint™ Profile soil moisture sensor suite; increasing the spatial resolution of data capture (both vertically into the soil and horizontally across locations).
Applications:
- Smart Agriculture
- The GroPoint™ Air solution integrates a GroPoint™ Profile multi-depth soil moisture sensor with a LoRaWAN radio transceiver, antenna and battery to provide an integrated wireless soil moisture profile measurement solution.
- A LoRaWan network or gateway is required for the GroPoint™ Air endpoints to connect to. The data collected from the remote sensors is upload over the LoRaWan network to a cloud based solution that captures and displays the soil moisture profile readings.
- A fixed measurement interval is set on the GroPoint™ Air device. The interval can be change remotely over the network connection.
- No external power source is required. The unit is powered by an 8500mAh Li-SOCl2 battery designed for long term use. Depending on the sensor selected, outside operating temperatures, and the measurement interval selected the unit can operate for several years on battery.
- The LoRa wireless technology used in GroPoint™ Air allows devices to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
Features:
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- Supports GroPoint™ Profile
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- AT Commands to change parameters
- Uplink on periodically
- Downlink to change configure
- IP66 Waterproof Enclosure
- 8500mAh Battery for long term use
Model Part Numbers:
| Model | Sensor | Transceiver | Battery | Cable | M12 Connector |
|---|---|---|---|---|---|
| GroPoint Air 2 | 2625-S-T-2 (30cm), 2 moisture depths, 4 temp sensors | LoRaWAN | Included | 3M | 5 Pin |
| GroPoint Air 3 | 2625-S-T-3 (45cm), 3 moisture depths, 6 temp sensors | LoRaWAN | Included | 3M | 5 Pin |
| GroPoint Air 4 | 2625-S-T-4 (60cm), 4 moisture depths, 6 temp sensors | LoRaWAN | Included | 3M | 5 Pin |
| GroPoint Air 5 | 2625-S-T-5 (75cm), 5 moisture depths, 7 temp sensors | LoRaWAN | Included | 3M | 5 Pin |
| GroPoint Air 6 | 2625-S-T-6 (90cm), 6 moisture depths, 9 temp sensors | LoRaWAN | Included | 3M | 5 Pin |
| GroPoint Air 8 | 2625-S-T-8 (120cm), 8 moisture depths, 10 temp sensors | LoRaWAN | Included | 3M | 5 Pin |
Submit a General Inquiry
GroPoint's patented technique for soil moisture measurement
Our proprietary TDT5 technology delivers an exceptional price:performance ratio, with performance as good (in most cases better) as soil sensors costing much more.
